Characteristics and Applications of Different Types of Cast Nylon Pipe?

What is cast nylon pipe?

Cast nylon pipe is an engineering plastic pipe formed by casting a single mold under high temperature and normal pressure using anionic polymerization technology, combining caprolactam monomers with catalysts.

What types of cast nylon pipe and what are their performance characteristics?

The main types of cast nylon pipe include MC nylon pipe, MC901 nylon pipe, oil filled nylon pipe, glass filled nylon pipe, MoS₂ filled nylon pipe, and solid-lubricated nylon pipe.

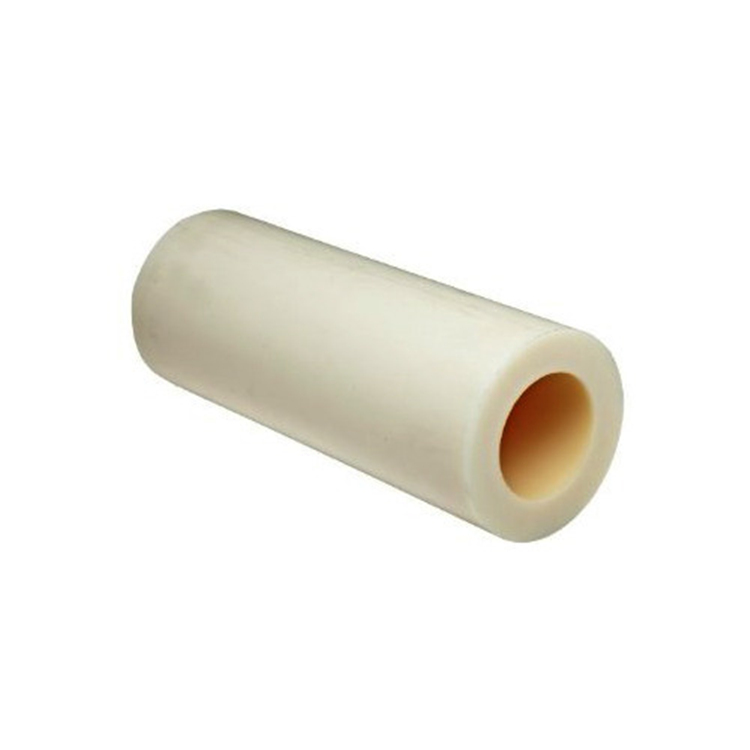

MC nylon pipe characteristics: Unmodified cast nylon 6 closely resembles nylon 66 in properties. It offers excellent overall performance, including high strength, rigidity, hardness, creep resistance, wear resistance, heat aging resistance, and good machinability.

MC901 nylon pipe characteristics: This modified nylon 6 has a distinctive blue color, higher toughness and flexibility than standard cast nylon, and superior fatigue resistance, making it ideal for gears, rack-and-pinion systems, and transmission components.

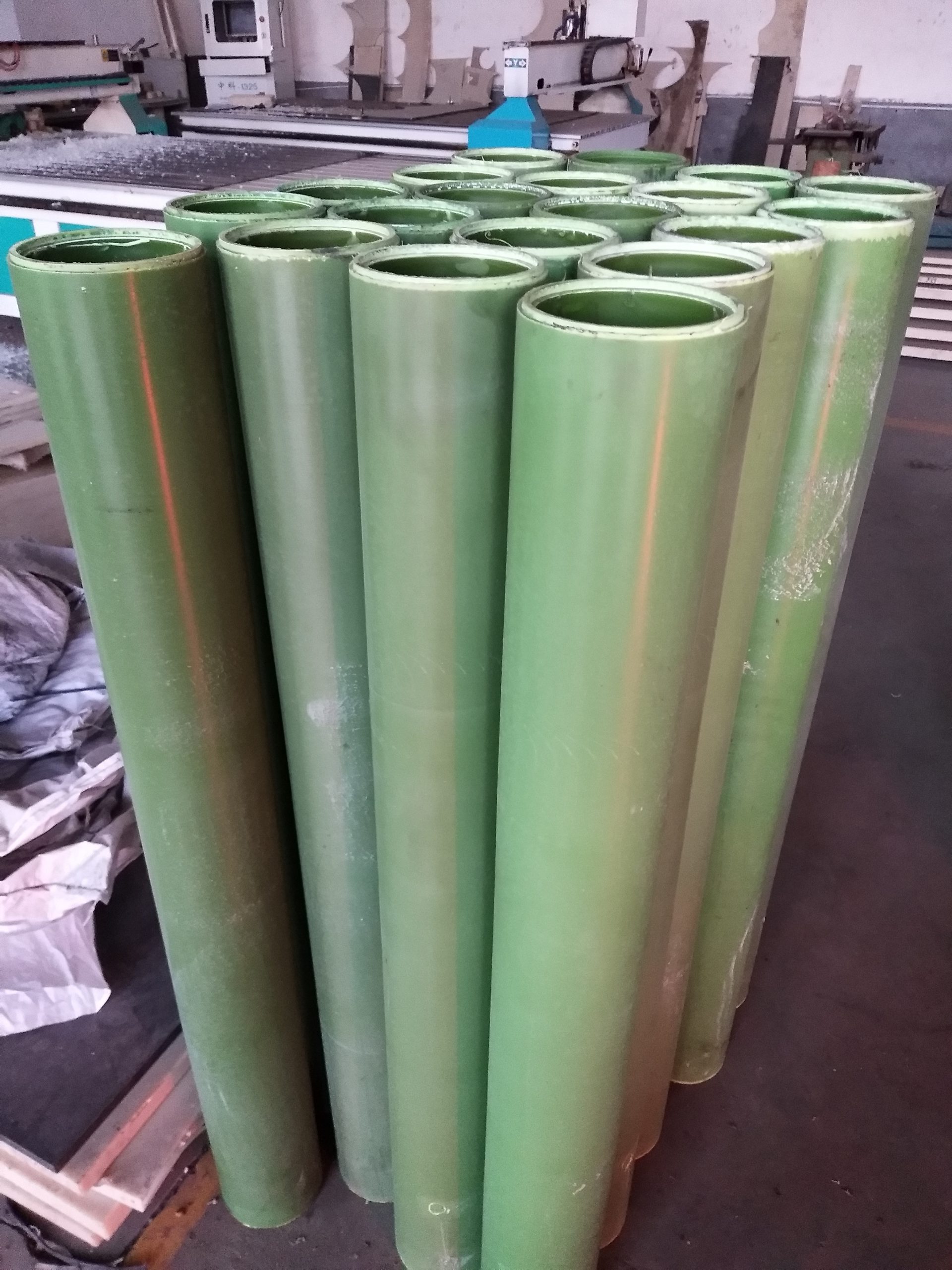

Oil filled nylon pipe characteristics: This cast nylon 6 is truly self-lubricating, specifically developed for parts that cannot be lubricated, operate under high loads, or run at low speeds. It significantly expands the application range of nylon, offering a friction coefficient up to 50% lower than conventional nylon while improving wear resistance by up to tenfold.

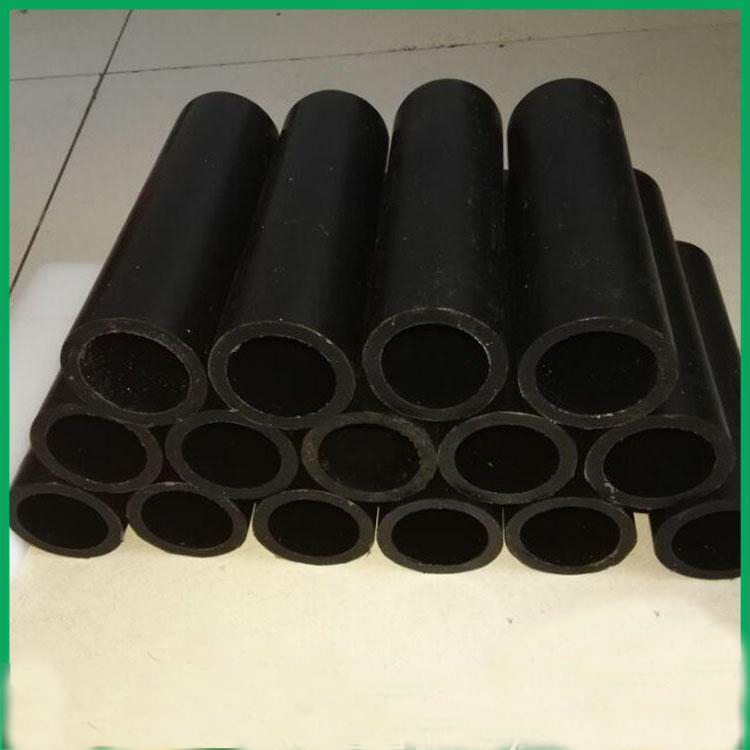

Glass filled nylon pipe characteristics: This material is an engineered plastic pipe made by adding glass fibers to cast nylon 6. It features high rigidity, mechanical strength, hardness, and compressive strength—second only to glass fiber itself—and excels in heat resistance, wear resistance, creep resistance, and dimensional stability.

MoS₂ filled nylon pipe characteristics: By incorporating MoS₂ powder into cast nylon 6, this material maintains the impact and fatigue resistance of unmodified cast nylon while enhancing load-bearing capacity and wear resistance. It is widely used in manufacturing gears, bearings, star wheels, and bushings.

Solid-lubricated nylon pipe characteristics: This cast nylon 6 contains solid lubricants, providing self-lubrication, excellent friction performance, outstanding wear resistance, and superior pressure-speed capability—up to five times better than standard cast nylon. It is especially suitable for high-speed, non-lubricable moving parts and serves as a perfect complement to oil filled nylon.

Applications of different types of cast nylon pipe

MC nylon pipe is primarily used in general mechanical industries to produce large-scale components difficult to form via injection molding, such as large gears, large valve seats, large worm wheels, and large bushings and bearing shells.

Oil filled nylon pipe is mainly applied in industrial wear scenarios requiring self-lubrication, low friction, and maintenance-free operation. It is a common alternative to metal wear-resistant parts, such as bushings, bearing shells, sleeves, heavy-duty industrial equipment, construction machinery, and hydraulic systems.

Glass filled nylon pipe is primarily used in three key areas: automotive components, electronics and electrical appliances, and industrial machinery. Typical applications include engine intake manifolds and cooling system parts in automobiles.

MoS₂ filled nylon pipe nylon tubing is mainly used in high-wear, high-load industrial environments. Leveraging the wear-resistant properties of MoS₂, it extends component life—ideal for wear-resistant transmission parts like gears, bearings, star wheels, bushings, and rotating shafts (commonly found in agricultural machinery). In heavy industries such as mining, metallurgy, and cement production, it can serve as liners, gaskets, guide blocks, and pulleys, replacing traditional metal components and reducing equipment maintenance frequency. It is also suitable for fluid transport and corrosion-resistant piping.

Solid-lubricated nylon pipe is used to manufacture mechanical transmission and wear-resistant components such as bushings, sleeves, gears, sliders, and guide rails. Under oil-free or oil-removed conditions, it offers superior wear resistance and self-lubrication performance compared to bronze, cast iron, and carbon steel, while also preventing damage to mating metal shafts.

Anyang Honesty Technology Co., Ltd., a long-standing Chinese cast nylon pipe manufacturer, has specialized in the research, development, and production of cast nylon pipe for over 20 years. We look forward to discussing and learning together with you to help customers select the most suitable products and deliver better service.
